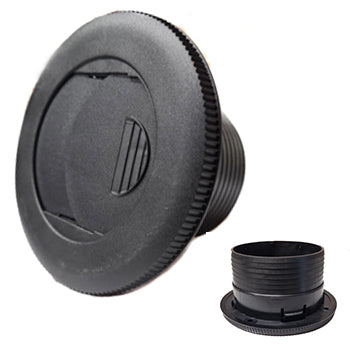

ESPAR Closable Hot Air Outlet

The ESPAR Closable Hot Air Outlet is a rotatable, lockable air outlet engineered for vehicle heater and HVAC applications. Designed to work with ESPAR and AURORA ducting systems, this compact swivel vent delivers directional airflow for headliners, dash consoles and confined spaces. Available in common spigot sizes, it provides an easy retrofit to 75mm (3") and 60mm duct runs for precise air distribution.

Key Features

• 360° Swivel & Lock: Rotate and lock the diffuser to aim airflow exactly where you need it.
• Closable Diffuser: Integrated flaps allow partial or full closure to control airflow.
• Durable Construction: Glass-fiber reinforced polyamide resists continuous temperatures up to 120°C and short-term peaks to 190°C.
• Standard Spigot Sizes: Available in 75mm (3") and 60mm spigot options to fit common ducting and hose connections.
• Easy Mounting: Snap-fit 3mm installation or screw mounting via a 4-hole base for secure headliner or dash installation.

ESPAR built this hot air outlet for reliable, focused airflow in vehicle and off-road heating systems. The robust polyamide body and lockable swivel give installers and end users straightforward control over venting. The 75mm (3") variant lists an outside outlet diameter of approximately 100mm and a recommended cut-out near 76.5mm, making it compatible with standard duct fittings. The closable diffuser helps reduce drafts and improve cabin comfort when paired with ESPAR heating or HVAC systems.

Before ordering, confirm your duct diameter (75mm/60mm) and mounting cut-out. See variant specifications below for estimated packaged dimensions and weights.
