Blue Sea Systems | SKU:
BSS-7650
Blue Sea - Add-A-Battery Dual Circuit System
Regular price
$35999 CAD
Unit price
/
Unavailable
Ships By Fri, June 19
Free
Canada Shipping
Couldn't load pickup availability
Why Shop With Us
Why Shop With Us
✔ Locally owned in Nanaimo, BC
✔ Trusted by boaters and anglers since 1986
✔ Knowledgeable staff with real on-the-water experience
✔ Large in-stock selection of marine & fishing gear
We’re here to help you get the right gear the first time.
Shipping & Pickup
Shipping & Pickup
We ship across Canada with fast, reliable delivery from our Nanaimo location.
✔ Trusted since 1986
✔ Fast Canada-wide shipping
✔ Expert support available
Need it sooner or have questions? Our team is here to help.
Returns & Warranty
Returns & Warranty
We stand behind the products we sell and want you to shop with confidence.
✔ Easy returns on eligible items
✔ Manufacturer warranties supported
✔ In-store support available if you need help
If something isn’t right, reach out and we’ll make it right.
Allows two battery banks to run simultaneously with one simple ON/OFF switch.

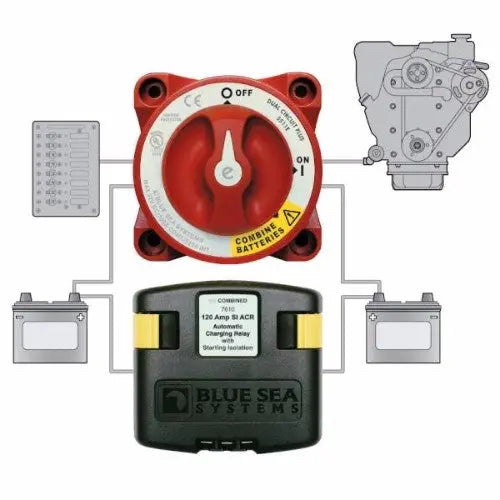

The Blue Sea 7650 Add a Battery package is a complete two battery bank management solution. It features a Blue Sea 5511e Dual Circuit PlusTM Battery Switch which isolates engine and house circuits and a Blue Sea 7610 120 Amp SI ACR automatic charging relay which combines batteries for charging. The battery switch will isolate the "Start" and "House" circuits while allowing the combination of both battery banks for emergency starting. In the "ON" position, both battery banks are energized simultaneously while maintaining battery bank isolation, minimizing the risk of a dead Start battery. The "Combine Batteries" function offers the ability to combine the two battery banks in the event of a low Start battery. Features include:
The Blue Sea 7650 Add a Battery package is a complete two battery bank management solution. It features a Blue Sea 5511e Dual Circuit PlusTM Battery Switch which isolates engine and house circuits and a Blue Sea 7610 120 Amp SI ACR automatic charging relay which combines batteries for charging. The battery switch will isolate the "Start" and "House" circuits while allowing the combination of both battery banks for emergency starting. In the "ON" position, both battery banks are energized simultaneously while maintaining battery bank isolation, minimizing the risk of a dead Start battery. The "Combine Batteries" function offers the ability to combine the two battery banks in the event of a low Start battery. Features include:
- Ignition protected - Safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Tactile textures indicate knob position by feel only
- Approx 4" x 4" footprint
https://www.youtu.be/vPhD7fgYq3w
-
BrandBlue Sea Systems
-
SKUBSS-7650
-
TypeBattery Kits
-
Barcode632085076504
