Pad-SX®- SX 55- Nodus Factory

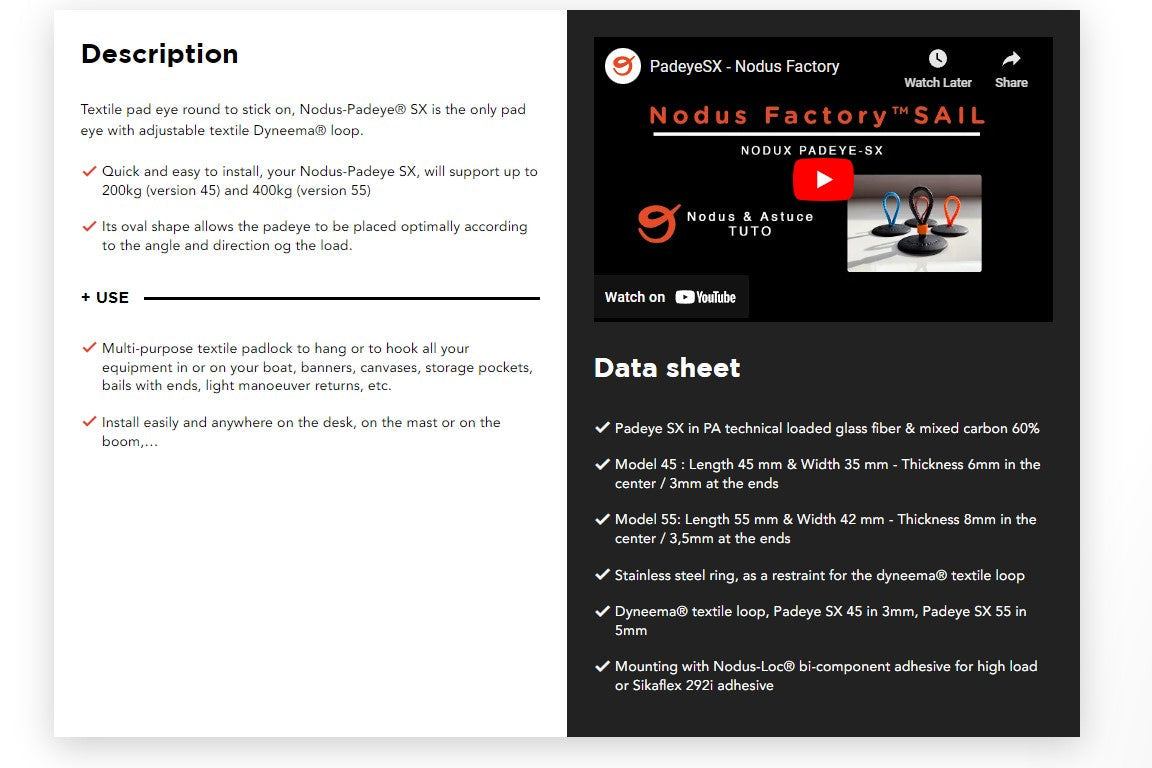

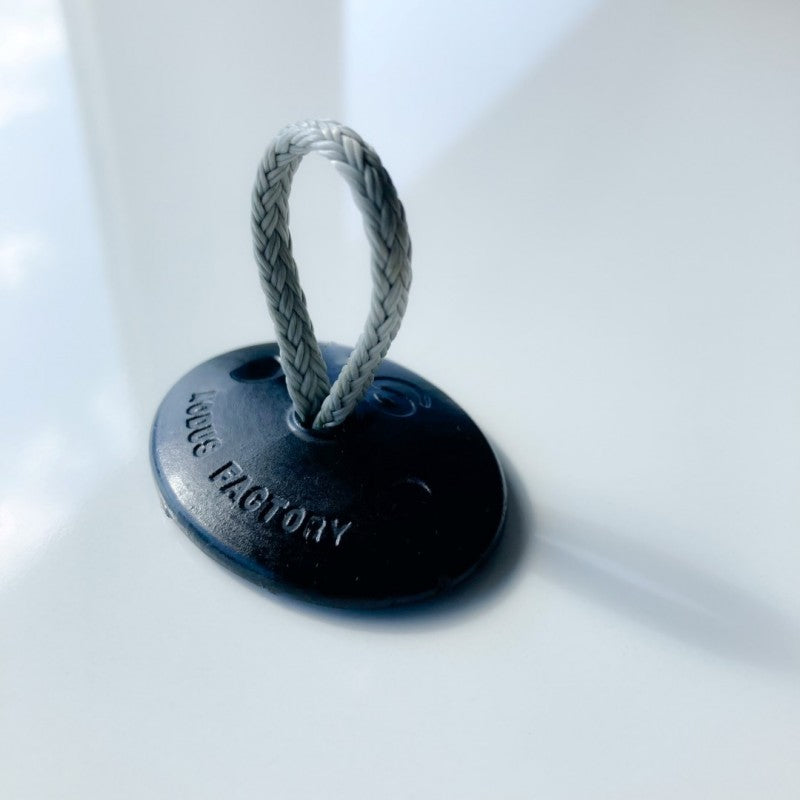

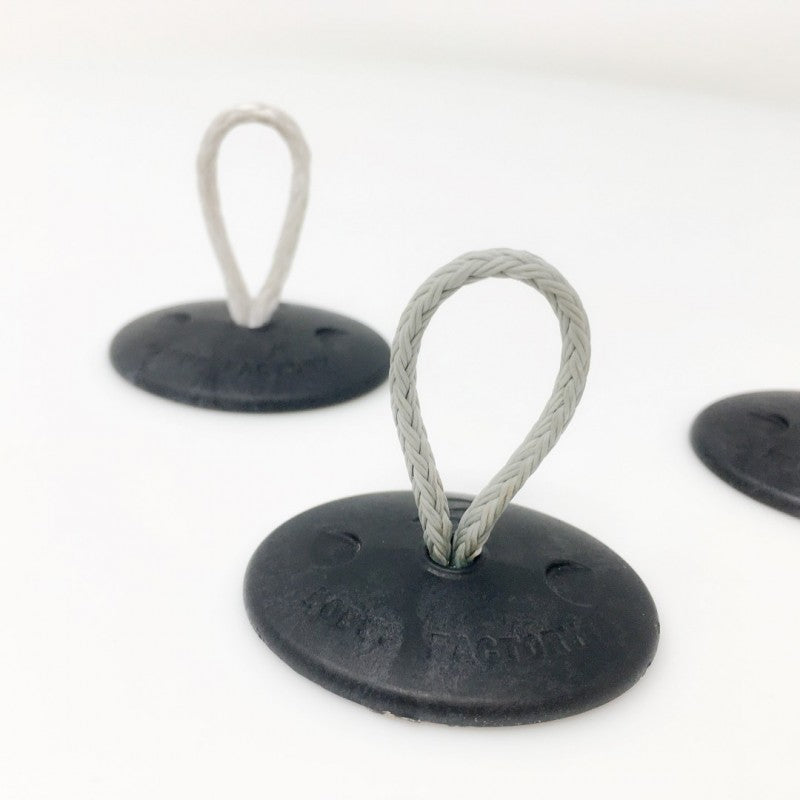

Textile pad eye round to stick on, Nodus-Padeye® SX is the only pad eye with adjustable textile Dyneema® loop.
Description
-
+ USE
- Data sheet

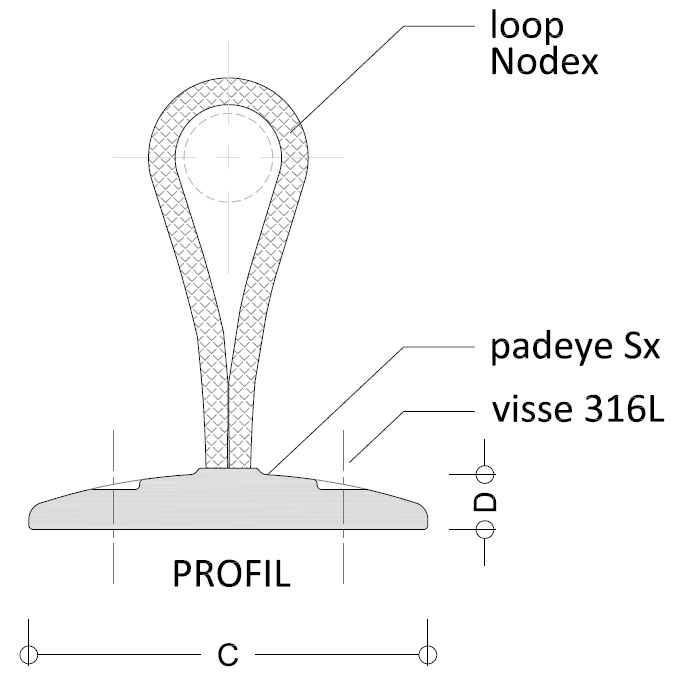

- Padeye SX in PA technical loaded glass fiber & mixed carbon 60%
- Model 55: Length 55 mm & Width 42 mm - Thickness 8mm in the center / 3,5mm at the ends

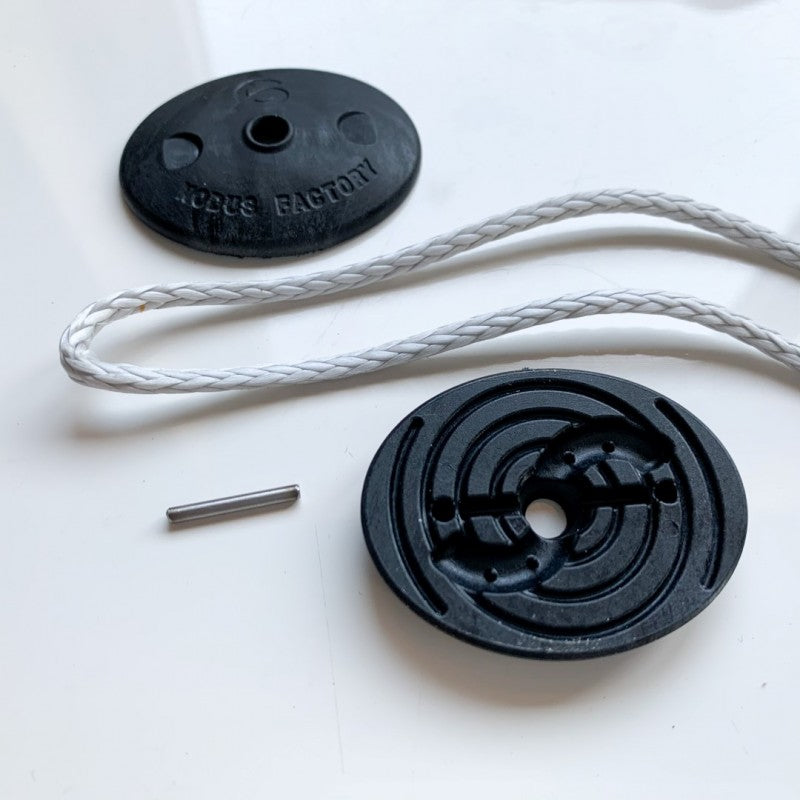

- Stainless steel ring, as a restraint for the Dyneema® textile loop
- Dyneema® textile loop, Padeye SX 55 in 5mm
- Mounting with Nodus-Loc® bi-component adhesive for high load or Sikaflex 292i adhesive
Optional: Nodus Loc® glue - 1 tube (12ml) for 4 to 6 pads
PA / Dyneema® / fibrous bioplastic polyamide (recyclable)

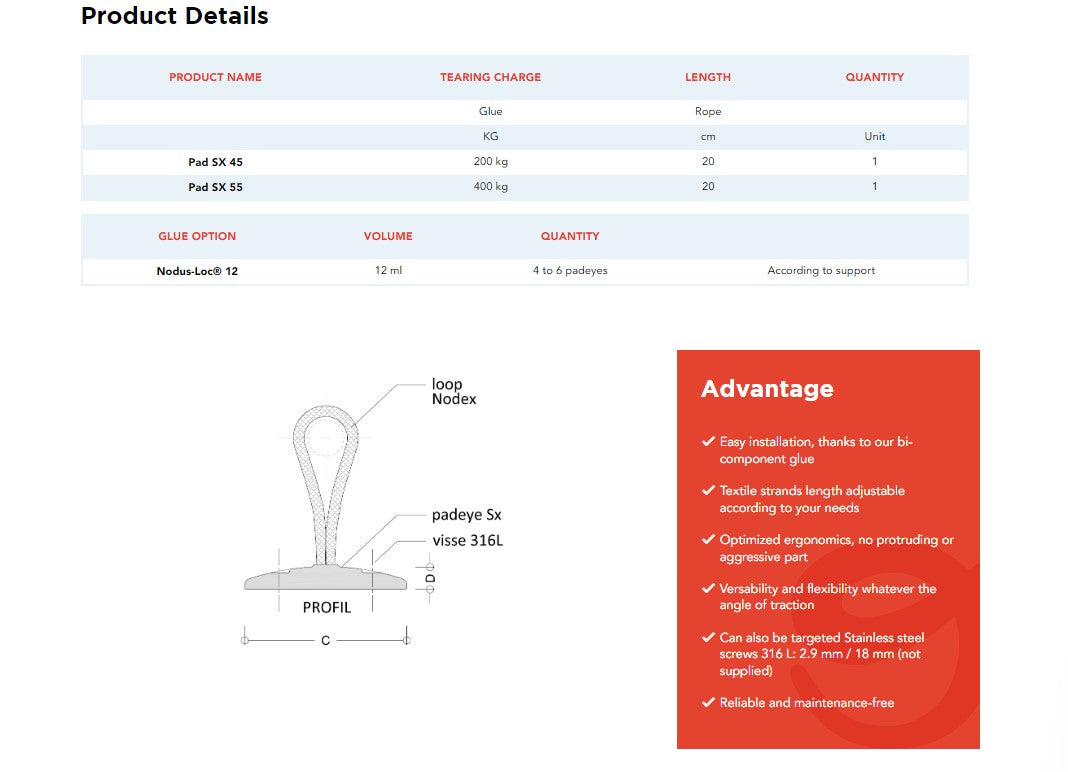

PRODUCT NAME TEARING CHARGE LENGTH QUANTITY Glue Rope KG cm Unit Pad SX 45 200 kg 20 1 Pad SX 55 400 kg 20 1 GLUE OPTION VOLUME QUANTITY Nodus-Loc® 12 12 ml 4 to 6 padeyes According to support
