Pad-SX®- SX 45- Nodus Factory

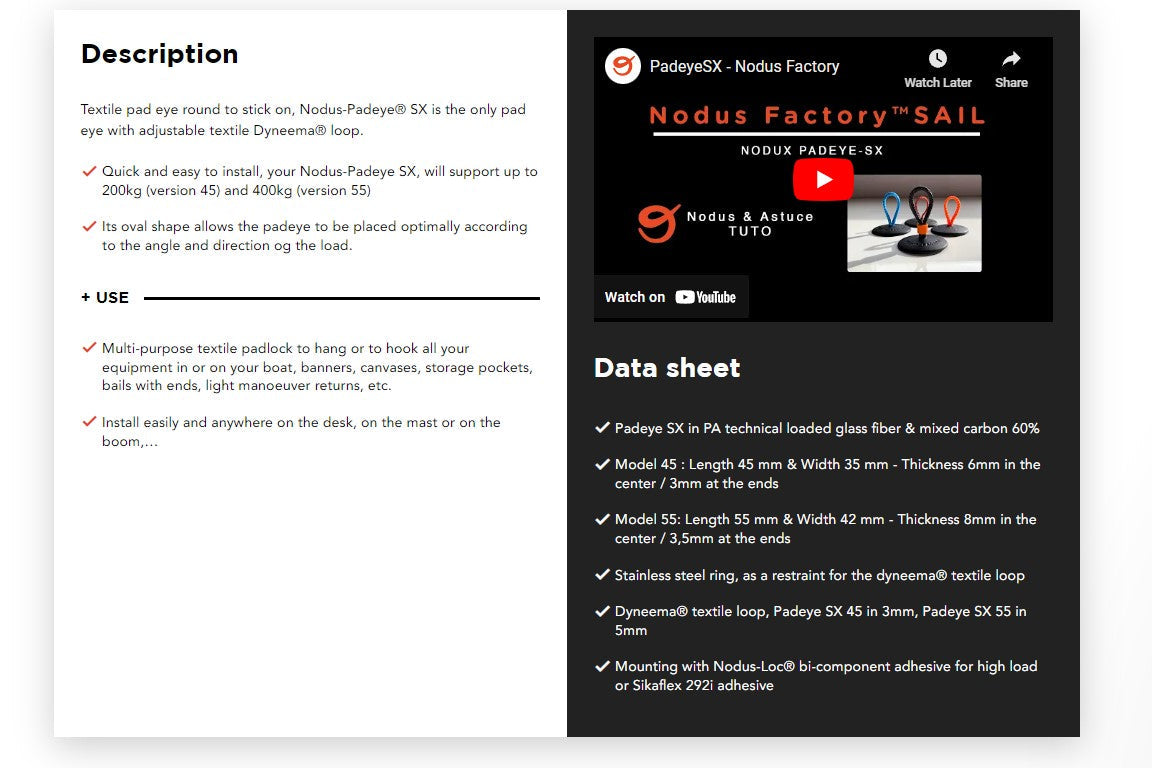

Textile pad eye round to stick on, Nodus-Padeye® SX is the only pad eye with adjustable textile Dyneema® loop.\
Description
-
+ USE
- Data sheet
- Padeye SX in PA technical loaded glass fiber & mixed carbon 60%
- Model 45 : Length 45 mm & Width 35 mm - Thickness 6mm in the center / 3mm at the ends
- Stainless steel ring, as a restraint for the dyneema® textile loop
- Dyneema® textile loop, Padeye SX 45 in 3mm
- Mounting with Nodus-Loc® bi-component adhesive for high load or Sikaflex 292i adhesive
Optional: Nodus Loc® glue - 1 tube (12ml) for 4 to 6 pads
PA / Dyneema® / fibrous bioplastic polyamide (recyclable)

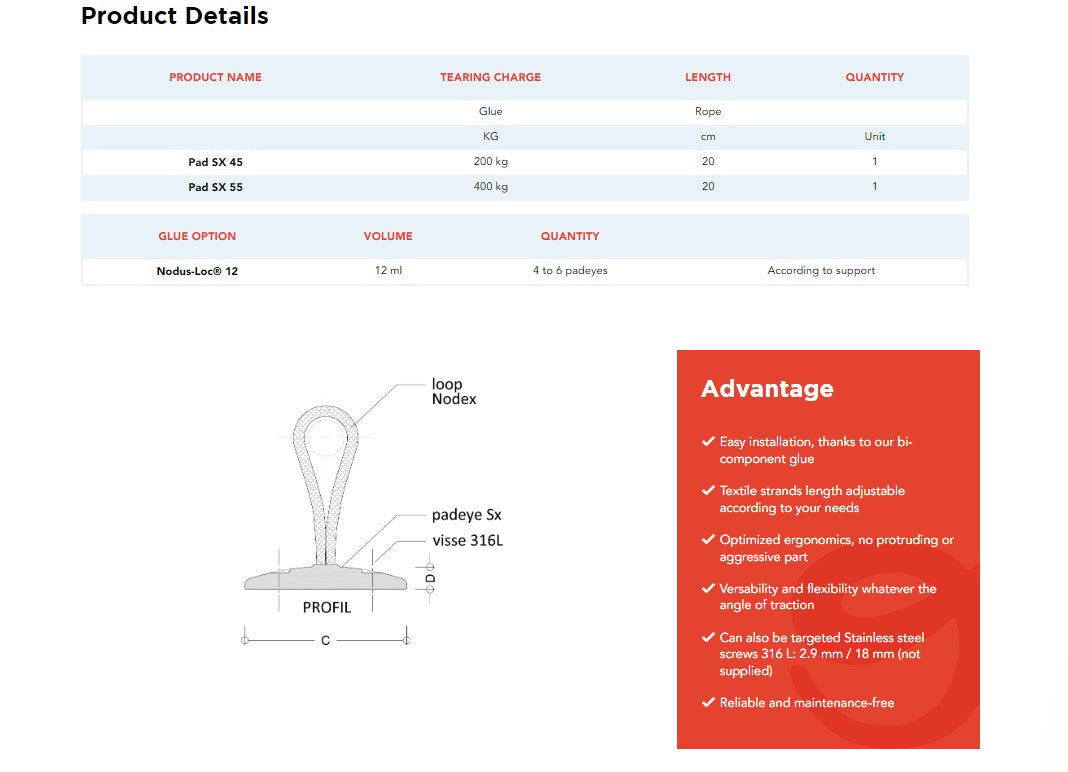

PRODUCT NAME TEARING CHARGE LENGTH QUANTITY Glue Rope KG cm Unit Pad SX 45 200 kg 20 1 Pad SX 55 400 kg 20 1 GLUE OPTION VOLUME QUANTITY Nodus-Loc® 12 12 ml 4 to 6 padeyes According to support
- Data sheet
