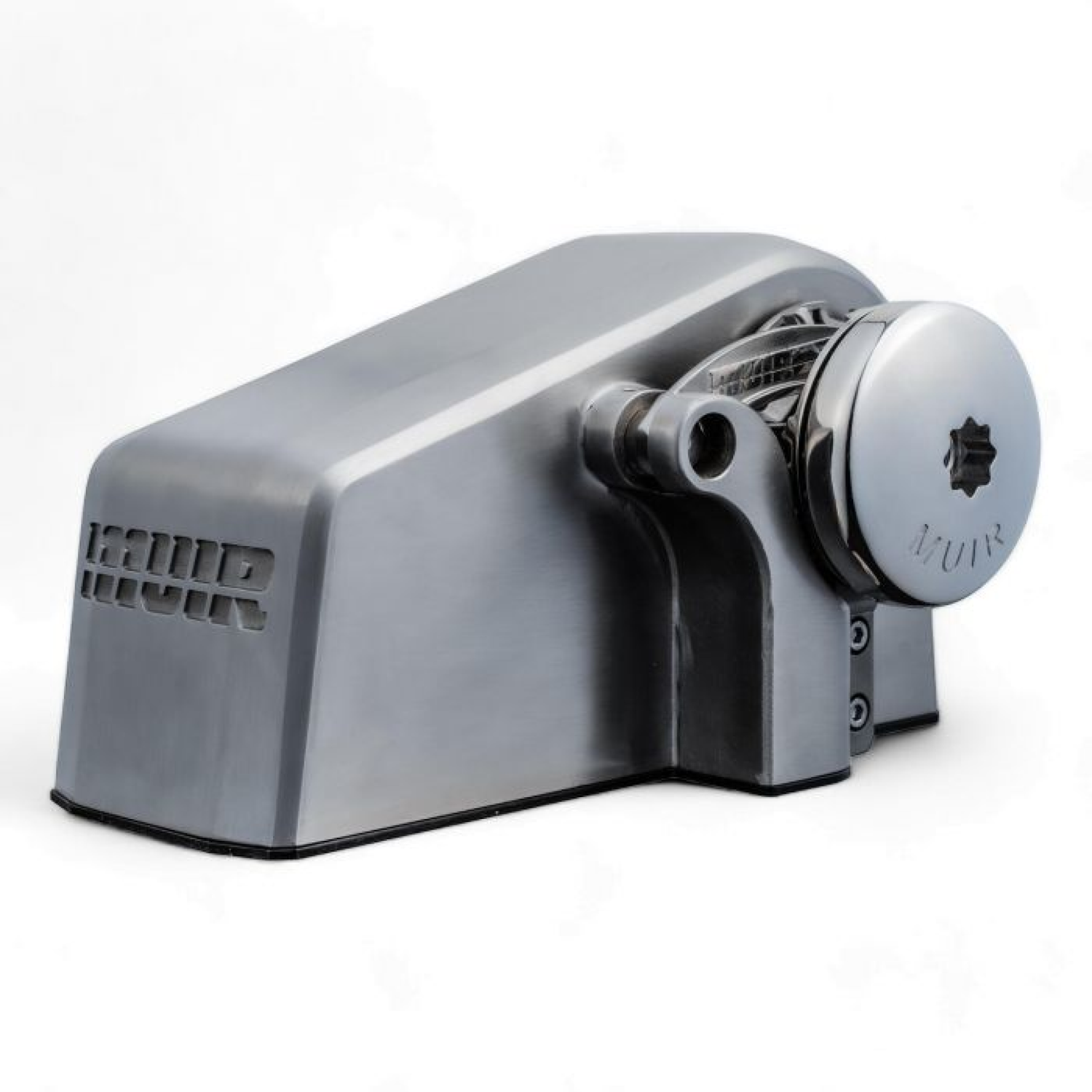

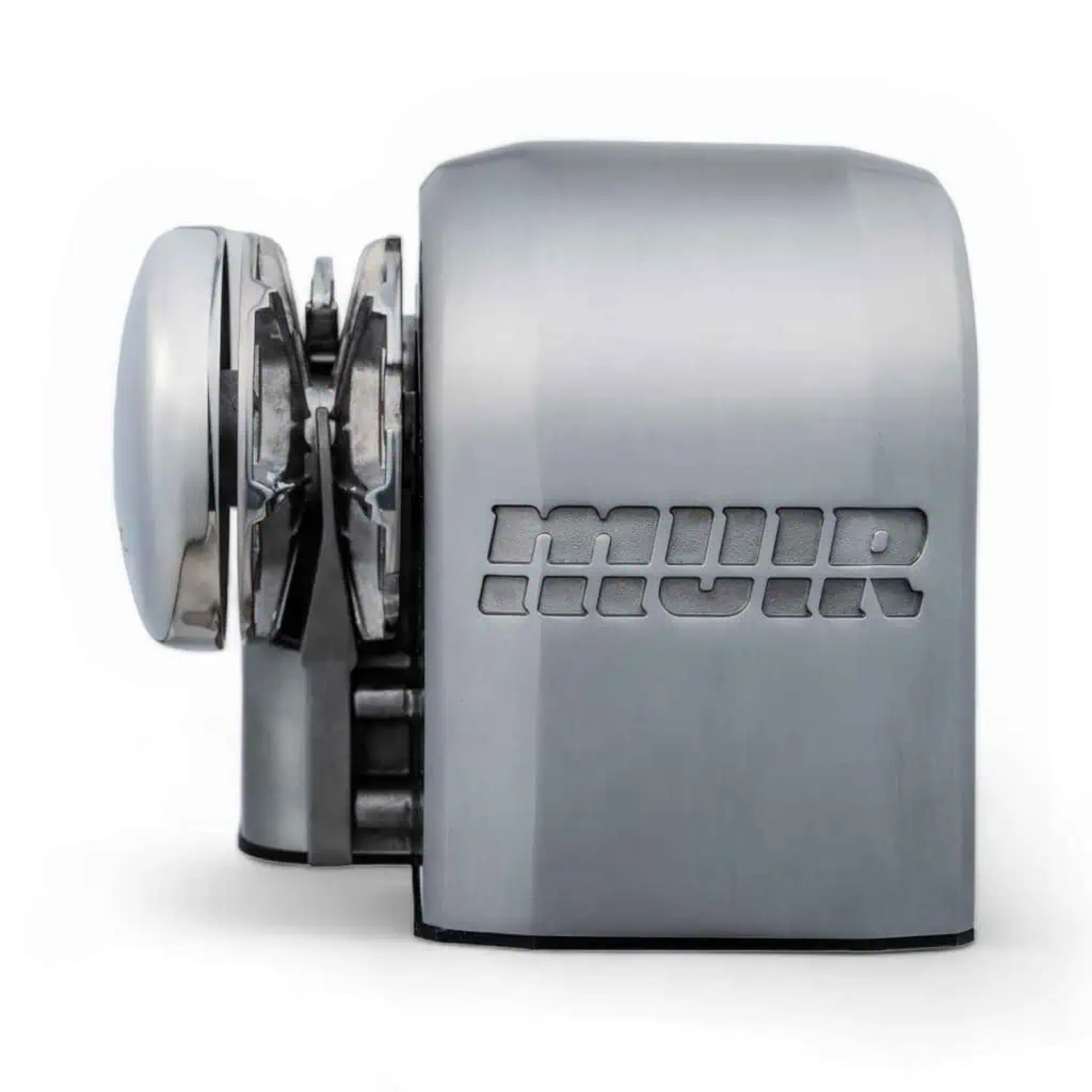

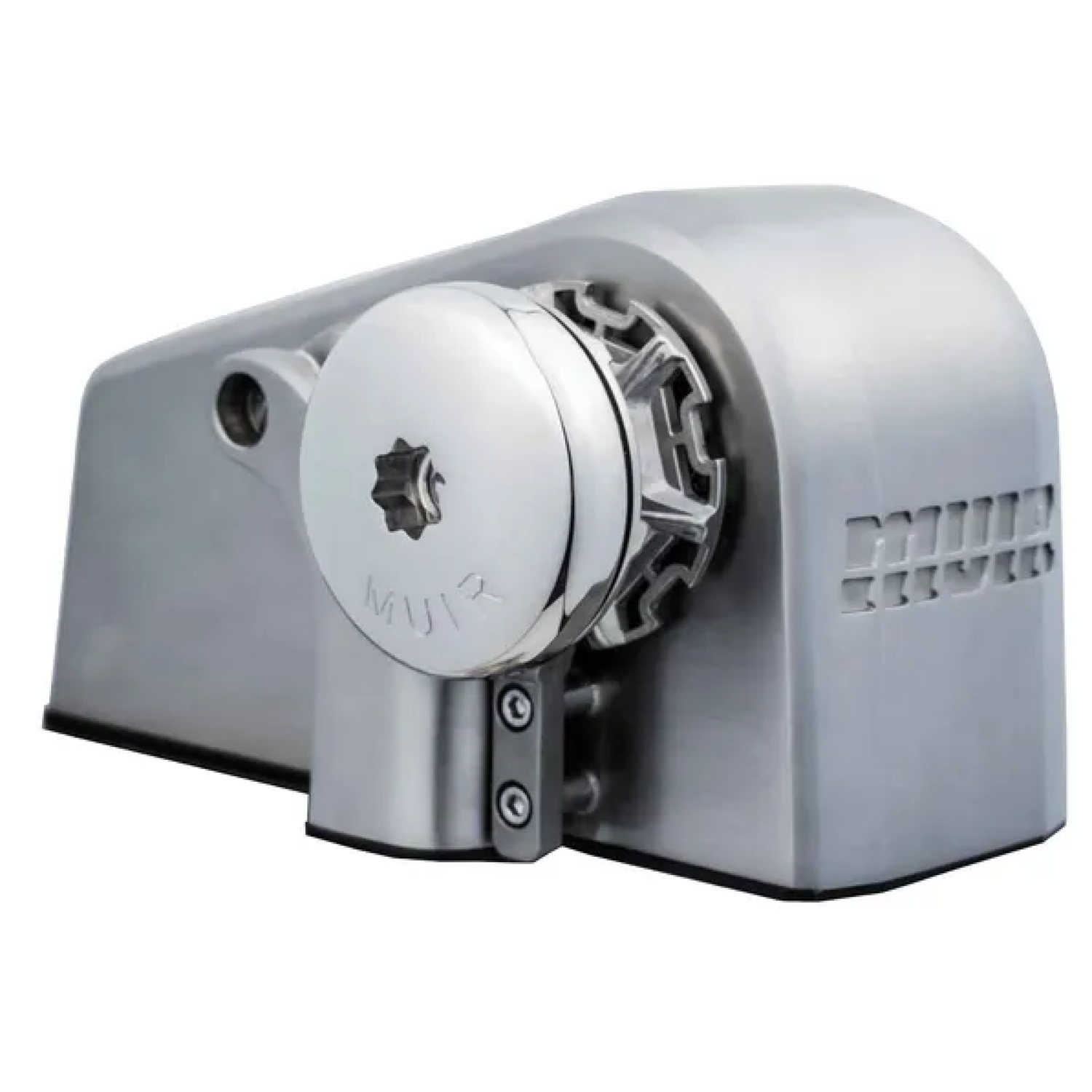

Muir HR650 Compact Windlass

With the Muir HR650 windlass, you can anchor your boat with confidence and ease.

Its sleek design will complement any vessel, while its powerful motor will lift and lower your anchor with precision.

Whether you're cruising along the coast or exploring new waters, the Muir HR650 windlass is the perfect choice for boaters who demand the best.

It is easy to install, operate, and maintain. And it comes with a 3-year warranty from Muir, the leading manufacturer of windlasses in the world.

Features

• Brushed-finished 316 stainless steel housing
• Polished stainless steel components
• High-tensile stainless steel shaft
• Heavy duty, marine grade, dual-direction motor
• Superior, heavy-duty Italian drive train
• Chain pipe & peeler
• Front double twin tootings

Specifications

• Model HR650
• Vessel Length: 5–8m (16–26ft)
• Power Supply: (DC) 12V
• Motor (Watts) 400
• Max Load: 220kg (484lb)
• Work Load: 73kg (161lb)
• Amps Work Load (DC) 60
• Max Line Speed: 23m/min (75ft/min)
• Gypsy: 6mm
• Chain Size: 6mm (1/4”)
• Rope Size (3PLY) 12mm (1/2")
• Net Weight: 9kg (20lb)
• Manual Operation: N/A

Standard package

• Circuit breaker & mounting panel
• Helm control rocker switch & mounting panel
• 12v reversing solenoid kit to suit all applications
• Deck mounting studs & fasteners
• Clutch release handle
• Installation/Operation booklet
