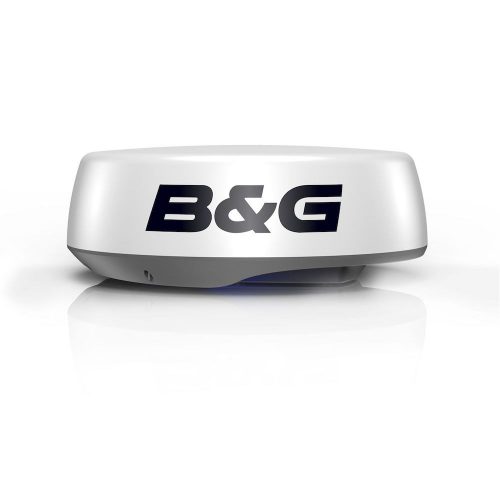

B&G Halo24 Radar

Please call for shipping quote 1-877-753-2425
HALO24 revolutionizes radar by offering an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack Doppler technology, and enjoy simultaneous short and long-range coverage-up to 48 nautical miles-from one compact 24-inch dome antenna.

Specifications

Ethernet Ports

100 Base T

Max Wind Speed

100 knots (51 m/s)

Min Range, scale

100 m (328 ft)

Warranty Period

2 Years

Power Consumption typical

20W

Operating Temperature Range

-25° to + 55°C (-13° to +130°F)

Power Consumption max

27W

Beam width

3.9° nonminal (-3dB) 2° with target separation on high

Max Range, scale

48 NM

Recommended Fuse Rating

5A

Weight

6.75 kg (14.9 lbs) without cable

Dimensions Diameter

610mm (24")

Dimensions H x W x D

610mm dia x 225 mm H. (24" dia x 8.9" H)

Supply Voltage

9 - 31.2 VDC (12/24V systems)

Humidity

95% RH at 35°C (95°F)

Approvals Compliance

FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety: China SRRC & CCS

Radar Modes

Harbour, Offshore, Weather, Bird Dual Range, North Up Course Up, Relative motion, True Motion

Waterproofrating

IPX6

Radar Technology

Pulse Compression

Interface

Simrad MFD

Rotation speed

Up to 60 RPM (Range Dependent)
