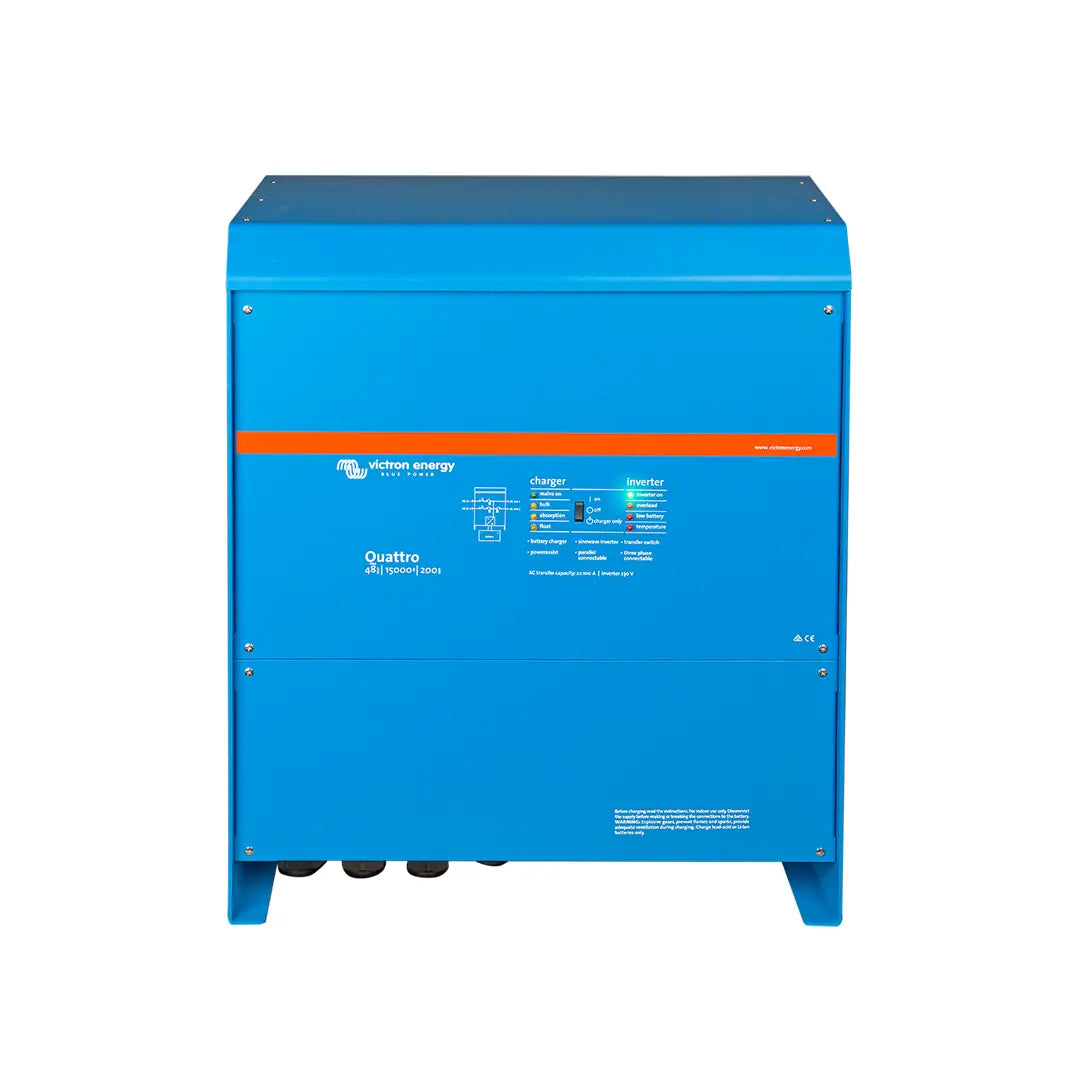

Victron Quattro 48/15000/200-100/100 277V VE.Bus Inverter/Charger – QUA483150100

The Pure Sine Wave Inverter - Quattro 48/15000/200-100/100 (QUA483150100) is a high-power Victron inverter/charger designed for demanding applications. With dual AC inputs, intelligent battery charging, and seamless no-break transfer, it ensures reliable power for both off-grid and grid-connected systems.

Key Features

• True sine wave inverter and advanced battery charger
• Two AC inputs with integrated transfer switch
• Two AC outputs with seamless (20 ms) no-break functionality
• Split-phase and three-phase capability (up to 180 kVA / 2400 A when paralleled)
• PowerControl – limits generator, shore, or grid current to prevent overload
• PowerAssist – supplements limited shore or generator power with battery support
• Works in off-grid, grid-tied, and backup power systems with PV integration
• Remote monitoring and configuration via Cerbo GX, VRM portal, and VictronConnect app

Technical Specifications

• DC system voltage: 48 V (range 38–66 V)
• Continuous output: 15,000 VA / 12,000 W at 25 °C
• Peak power: 25,000 W
• AC output: 277 VAC ±2%, 60 Hz ±0.1%
• Charger current: 200 A
• Absorption/Float/Storage: 57.6 V / 55.2 V / 52.8 V
• Max efficiency: 96%
• Zero-load power: 110 W (AES 75 W; Search 20 W)
• Dimensions: 572 × 488 × 344 mm
• Weight: 72 kg (160 lb)
• Enclosure: Aluminium, blue (RAL 5012), IP21
