AB Inflatables  |  SKU: AB-NAUT-19-DLX-IO

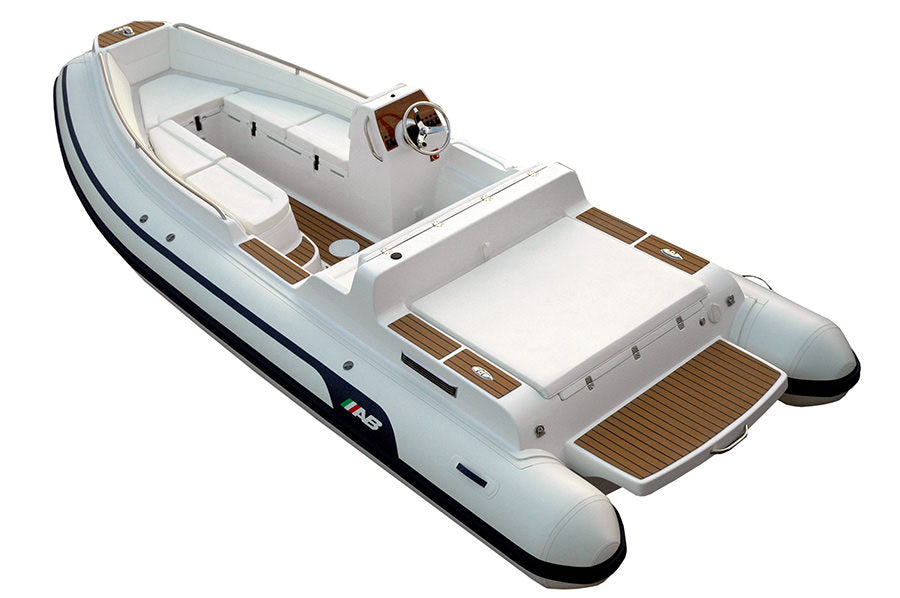

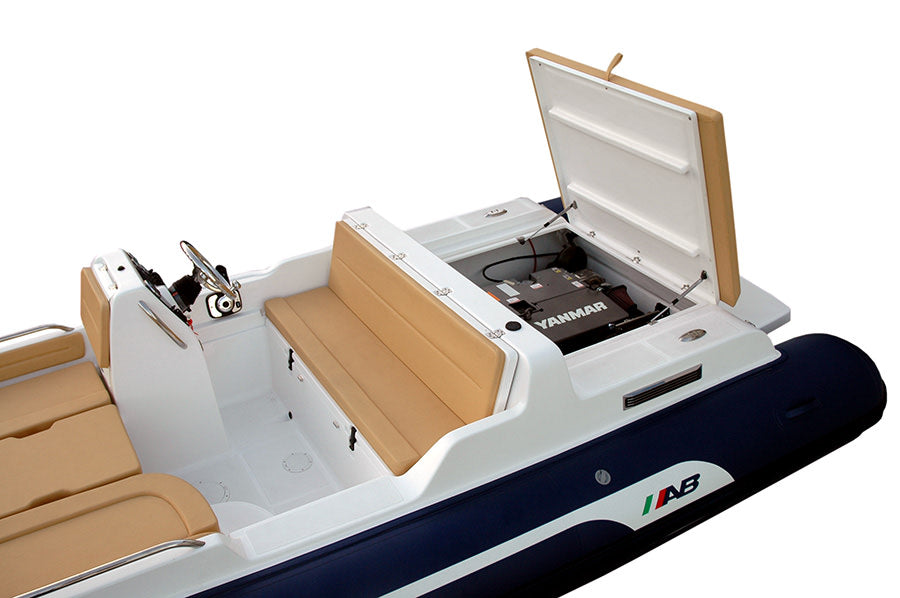

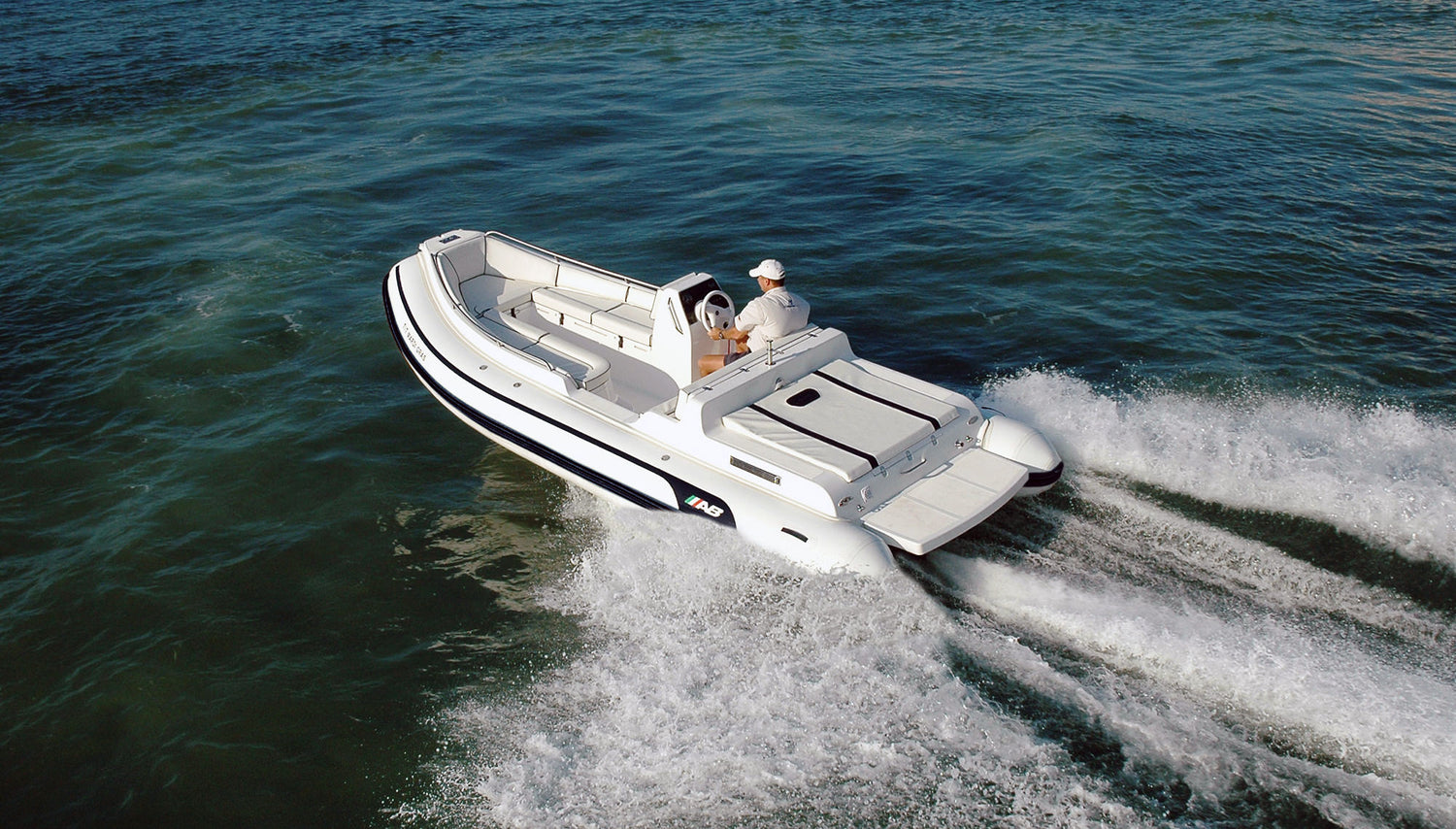

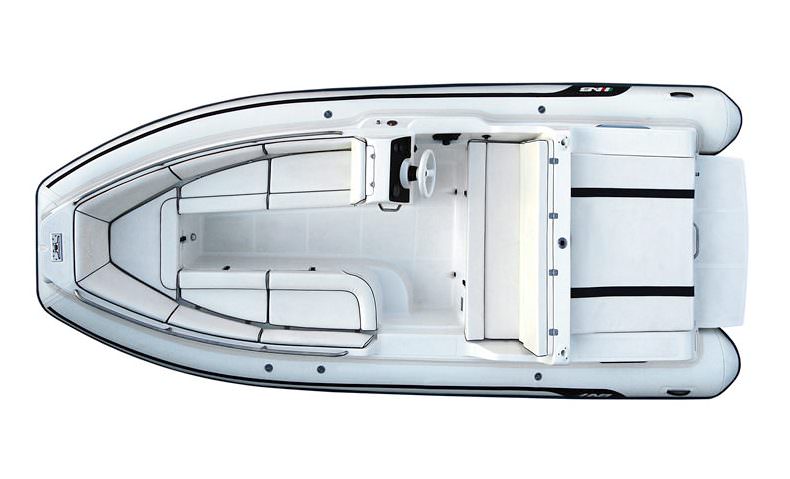

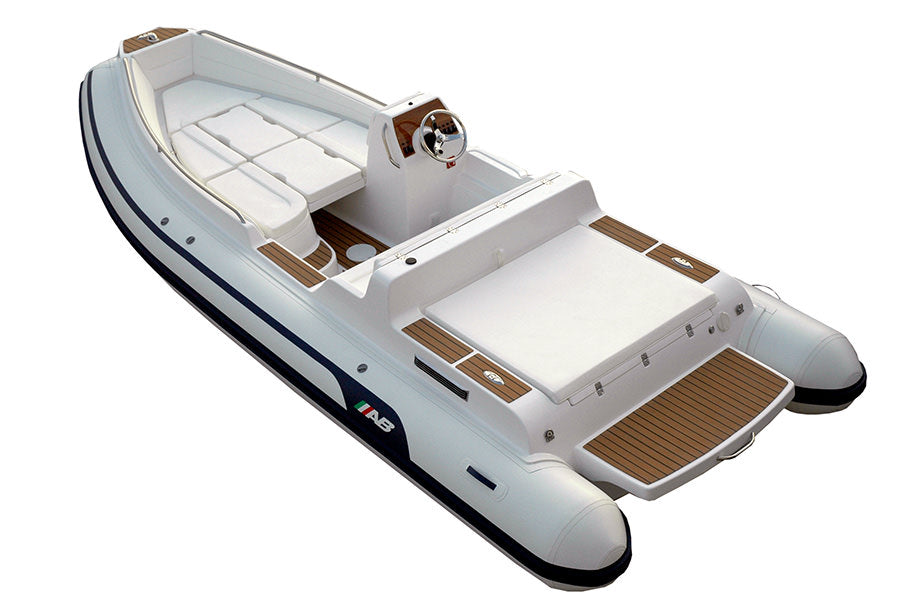

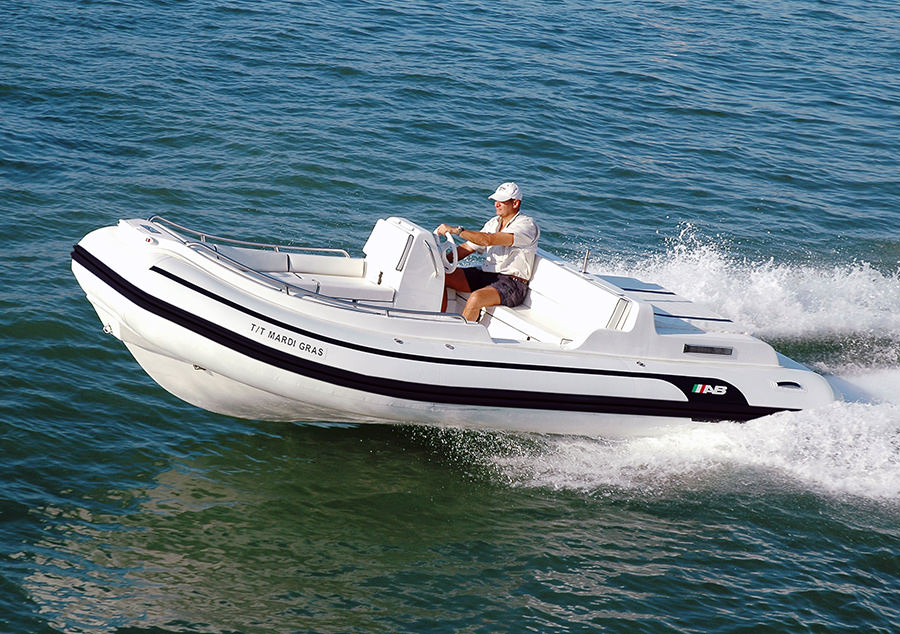

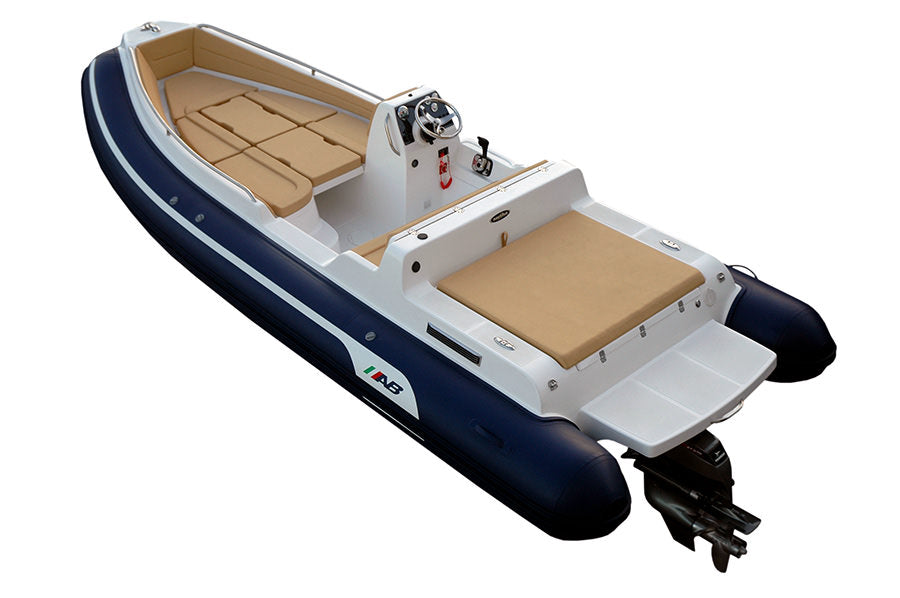

AB Inflatables Nautilus 19 DLX I-O

$100,000.00 CAD

A perfect blend of thoughtful design, top-of-the-line features and elegant craftmanship.

Key Features
  • Fresh Water System with Shower
  • Hydraulic Steering System and SS Wheel
  • 12V DC SOCKET & USB PORT
  • LED Navigation Lights
  • All Around LED Anchor Lights
  • Compartment Yacht Quality finish - easy Maintenance
  • SS Gas Springs for easy lifting
  • Larger Fuel Tank Capacity
  • Sunbed
  • Rigging Included
  • "V" Hull
  • NMMA Certified Aluminum Fuel Tank
  • More Storage Capacity
  • ORCA (CSM) Coated Fabric
  • Sunbrella Fabric Boat Cover Available
  • Lateral Cushions for better comfort
  • Lateral Bow SS Rails for Added Safety
  • Reinforced (CSM) Fabric Handles
  • Custom Colors Upon Request
Specs
Overall length 19' / 5.79m
Overall Beam 8’4’’ / 2.54m
Inside Length 15’4’’ / 4,67m
Inside Beam 4'5" / 1.35m
Tube Diameter 22’’ / 0,56m
Number of Chambers 5
Person Capacity 10
Weight 1551lb / 705kg
Recommended HP 150hp / 111.9kw
Maximum HP 220hp / 264.1kw
Shaft Length I/O - Jet
Fuel Built-In Tanks 67 gal / 254 lt - EPA compliant fuel tanks, 7% reduction approx.
Water Built-In Tanks 20 gal / 76 lt
RDC Design Category C
Standard Equipment
  • Hand Laid Fiberglass Deep “V” Hull
  • Hand Laid Fiberglass Deep “V” Hull
  • Diamond Shape Non-skid Deck
  • Self Bailing Deck
  • Integrated Marine Grade Aluminum Fuel Tank (Integrated Marine Grade Aluminum Fuel Tank (EPA compliant fuel tanks, 7% reduction approx.)
  • Marine Grade Aluminum Water Tank with Pump and Shower
  • 12V DC SOCKET & USB PORT

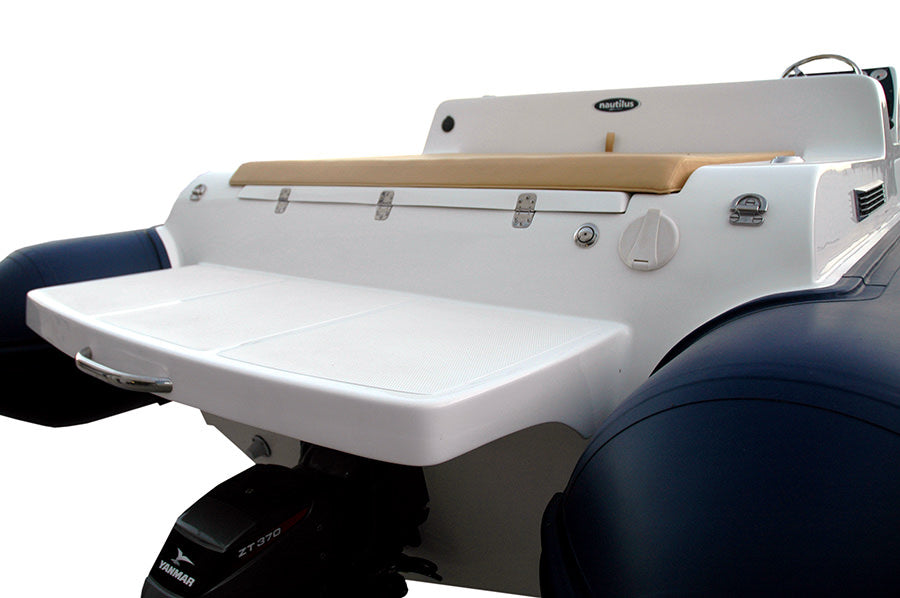

  • Transom Swim Platform
  • Bow Rider Seating Style
  • One All Integrated Deck with Bow Front & Lateral Closed Cell Cushions
  • 2 Front & 2 Side Orca (CSM) Fabric Handles on Tubes
  • Raised Double Rub Rail
  • Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
  • Orca (CSM) Five Layer Coated Fabric
  • Hand Pump
  • Maintenance Kit
  • Owner's Manual
  • Closed Cell Foam Upholstery
  • Port Boat Entrance Step with Diamond Shape Non-Skid

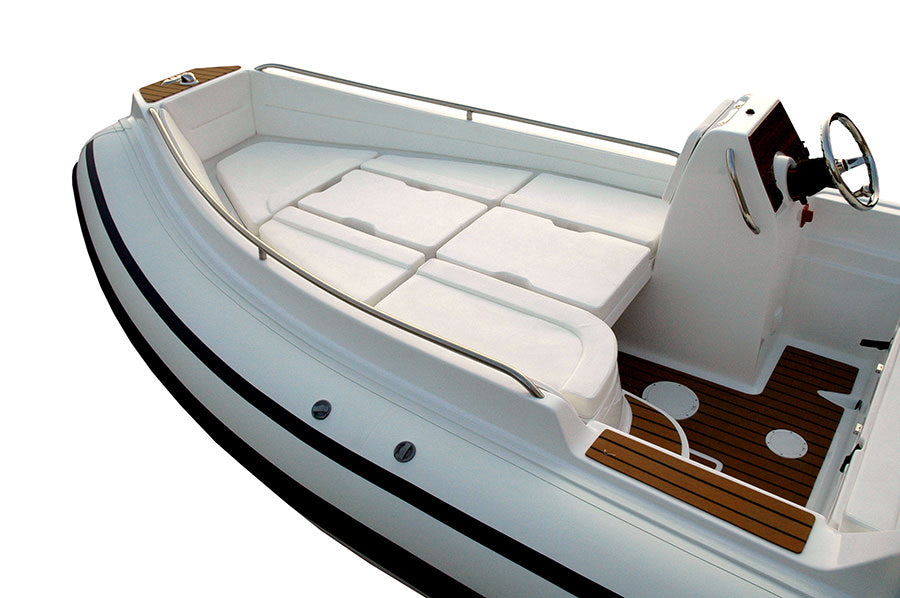

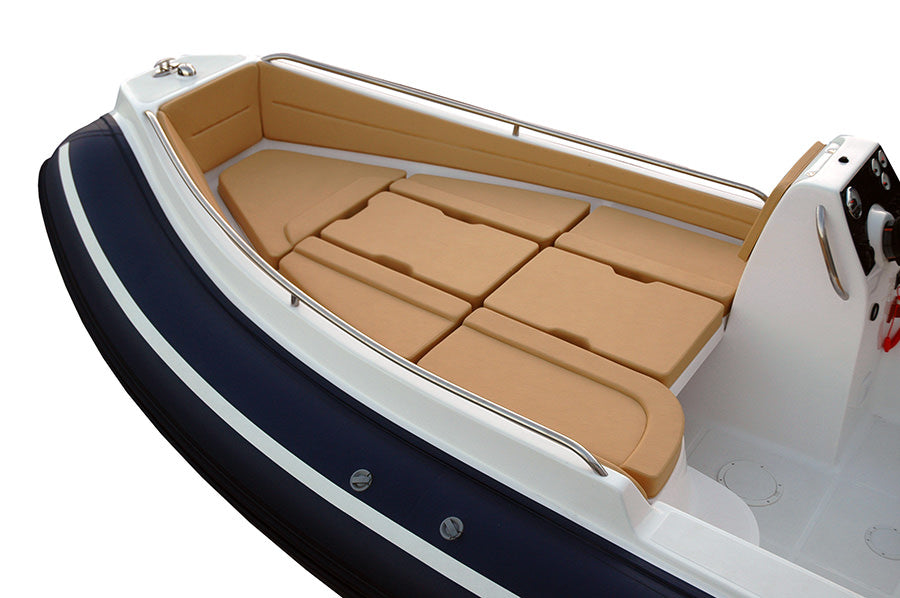

  • Bow Sunbathing Bed
  • Stern Sunbathing Bed
  • Integrated Fiberglass Console
  • Molded-In Stern Seat & Cushion with Armrest & Large Storage
  • 2 Port, 2 Starboard Seats with Coolers and/or Lockers with Cushion
  • 2 Deck Drains
  • Hull Drain with Plug
  • Bow Locker/Seat
  • Bow Hatch Cushion
  • Console Front Access Lid
  • Bow Step with Fold Down Stainless Steel Cleat & Running Lights
  • 360° White Light Navigation Pole
  • Integrated Stainless Steel Bow Port & Starboard Handrails
  • Lateral Fold Down Stainless Steel Cleat
  • 3 Stainless Steel Davit Lifting Points
  • Stainless Steel Console Grab Handle
  • Stainless Steel Tie Down & Towing Rings
  • Stainless Steel Bow Eye
  • Stainless Steel Transom Tie Down & Towing Rings
  • Deluxe Carbon Fiber Style Pannel
  • 6 Waterproof Rocker Switches with Circuit Brakers
  • Battery Box
  • Battery Switch
  • Fuel and Water Separator Filter
  • Sending Unit
  • Automatic Bilge Pump 750 GPH
  • Battery Charger
  • Hydraulic Steering System
  • Stainless Steel Steering Wheel with Knob
  • Complete Tin Wiring & (Head) Heat Shrink Seal Terminals
  • 4 Layers Reinforced Seams
Optional Equipment
  • Stainless Steel Light Arch
  • Transom Ladder
  • Bimini Top
  • Chock Set
  • Boat Cover
  • Console Cover
  • Lifting Harness
  • Teak Floor
  • CD/Radio System
  • Compass
  • GPS
  • VHF Package
  • Rod Holders
  • Stainless Steel Ski Tow
