Blue Sea Systems | SKU:
BSS-2128

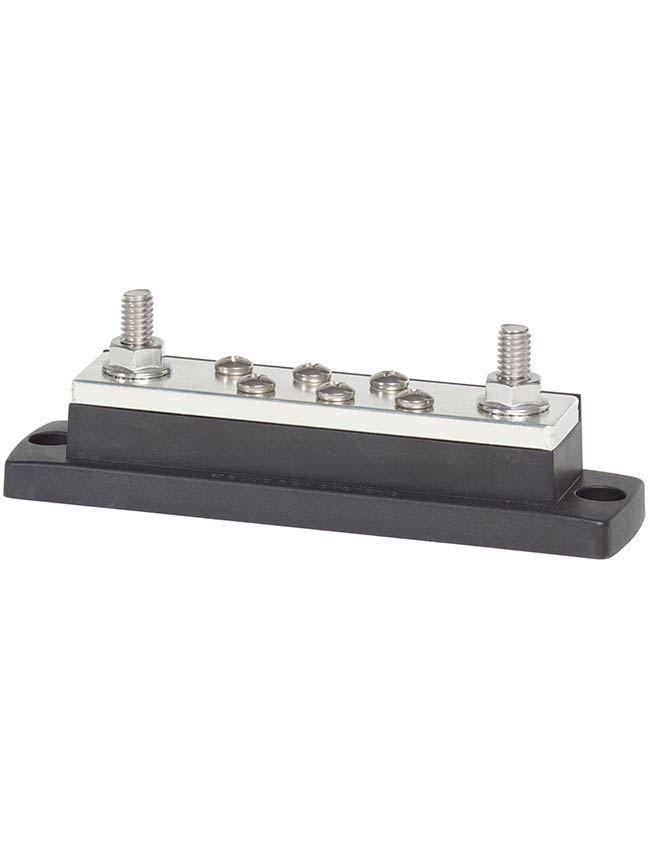

Blue Sea System Maxi Bus Bar - 5/16" 6X 10/24 Studs
Sale price
$39.93 CAD
Regular price
$67.99
Unit price
/
Unavailable
Blue Sea System Maxi Bus Bar - 5/16" 6X 10/24 Studs is in stock and available for pickup within 24hrs.
Ships By Sat, December 6
Free
Canada Shipping over $120
Couldn't load pickup availability
Blue Sea System Maxi Bus Bar - 5/16" 6X 10/24 Studs
Sale price
$39.93 CAD
Regular price
$67.99
Unit price
/
Unavailable
Busbars are used to consolidate multiple wires or feed multiple circuits
-
- Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
- Raised bus provides easy access to multiple wires on a single stud
- UL 94-V0 rated base material resists high heat
- Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
| Specifications | |
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Screw Terminals | 6 |
| Number of Terminal Studs | 2 |
| Terminal Type | #10-24 Screw 5/16"-18 Stud |
| Continuous Rating | 250A |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Recommended Screw Torque | 23 in-lb (2.6 N·m) |
| Recommended Stud Torque | 132 in-lb (14.91 N·m) |
| Weight | 0.65lb (0.29 kg) |
| Weight | 0.80lb (0.36 kg) |
-
BrandBlue Sea Systems
-
SKUBSS-2128
-
TypeBus Bars & Power Posts
-
Barcode632085021283
