Blue Sea Systems | SKU:
BSS-2302

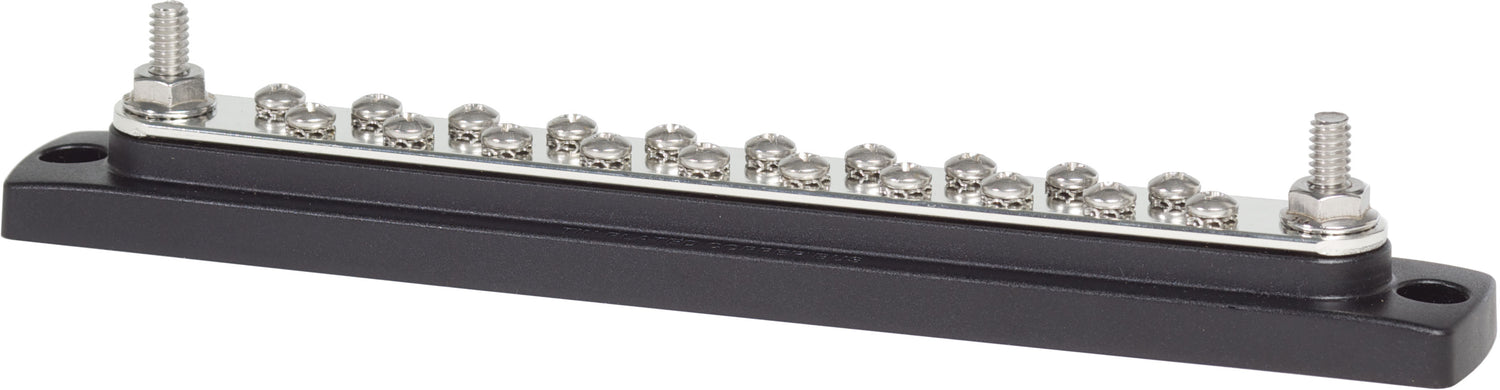

Blue Sea Common 150A BusBar - 20 Gang
Regular price
$49.99 CAD
Unit price
/
Unavailable
Blue Sea Common 150A BusBar - 20 Gang is in stock and available for pickup within 24hrs.
Ships By Sat, December 6
Free
Canada Shipping over $120
Couldn't load pickup availability
Blue Sea Common 150A BusBar - 20 Gang
Regular price
$49.99 CAD
Unit price
/
Unavailable
- The industry standard busbar for positive distribution
- The industry standard busbar for the collection of negative or AC ground circuits
| Specifications | |
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Screw Terminals | 20 |
| Number of Terminal Studs | 2 |
| Terminal Type | 1/4" Stud #8-32 Screw |
| Continuous Rating | 130A AC 150A DC |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Screw Terminal Torque | 15 in-lb (1.69 Nm) |
| Stud Torque | 60 in-lb (6.78 Nm) |
| Weight | 0.53lb (0.24 kg) |
| Weight | 0.51lb (0.23 kg) |
| Resources | |
-
BrandBlue Sea Systems
-
SKUBSS-2302
-
TypeBus Bars & Power Posts
-
Barcode632085023027
