Blue Sea Systems | SKU:
BSS-6011

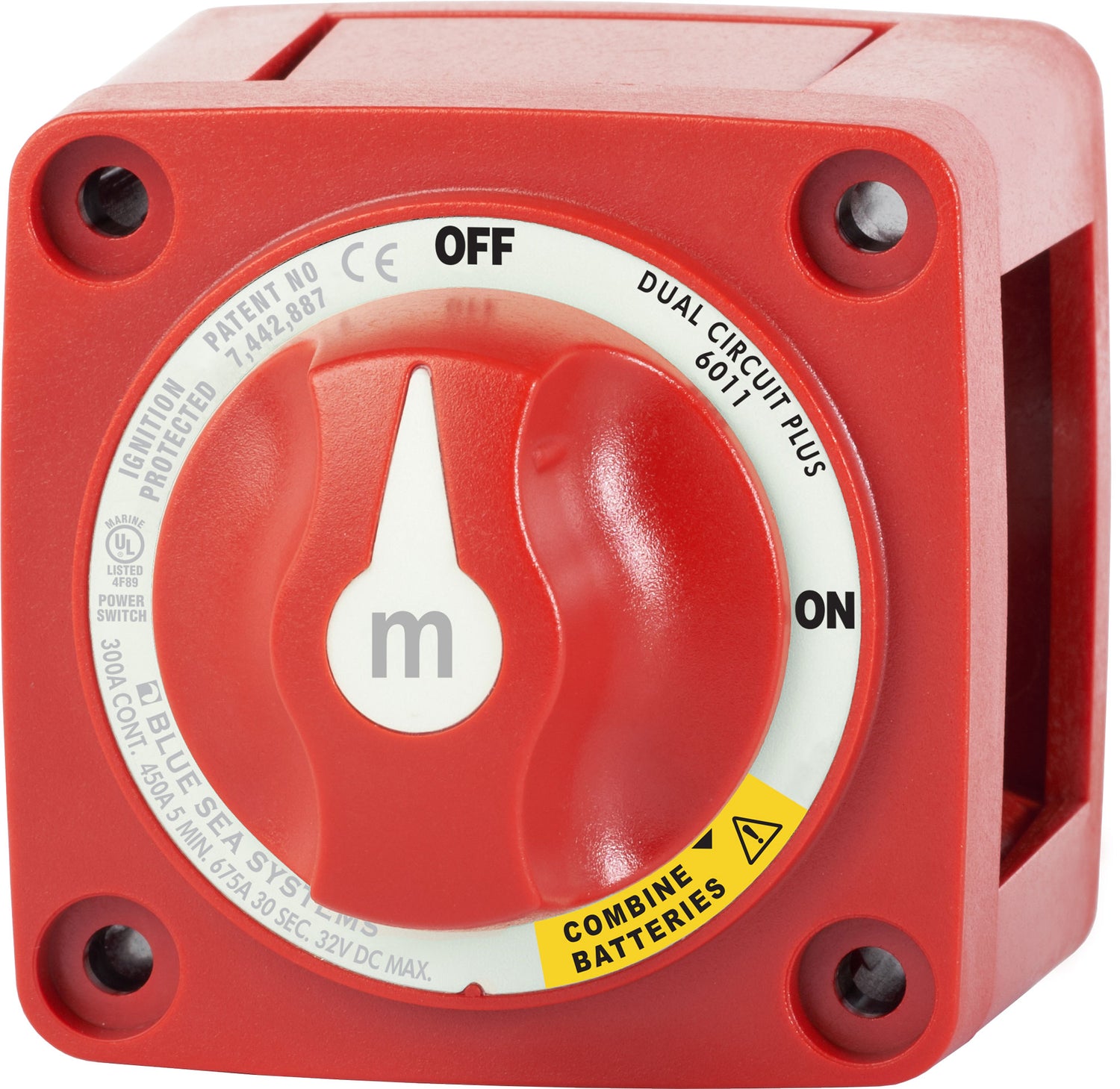

Blue Sea m-Series Mini Dual Circuit Plus Battery Switch - Red
Regular price
$91.99 CAD
Unit price
/
Unavailable
Blue Sea m-Series Mini Dual Circuit Plus Battery Switch - Red is in stock and available for pickup within 24hrs.
Ships By Sat, December 6
Free
Canada Shipping over $120
Couldn't load pickup availability
Blue Sea m-Series Mini Dual Circuit Plus Battery Switch - Red
Regular price
$91.99 CAD
Unit price
/
Unavailable
Simultaneously switches two isolated battery banks or combines battery banks to all loads
- Make before break contact design allows switching between battery banks without power interruption
| Specifications | |
|---|---|
| Switch Type | Dual Circuit Plus |
| Color | Red |
| Switch Positions | 3 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 450A (5 min) |
| Cranking Rating 30 sec | 675A per circuit |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 0.80lb (0.36 kg) |
| Weight | 0.80lb (0.36 kg) |
| Resources | |
-
BrandBlue Sea Systems
-
SKUBSS-6011
-
TypeBattery Switches
-
Barcode632085060114
