B&G  |  SKU: 000-14082-001

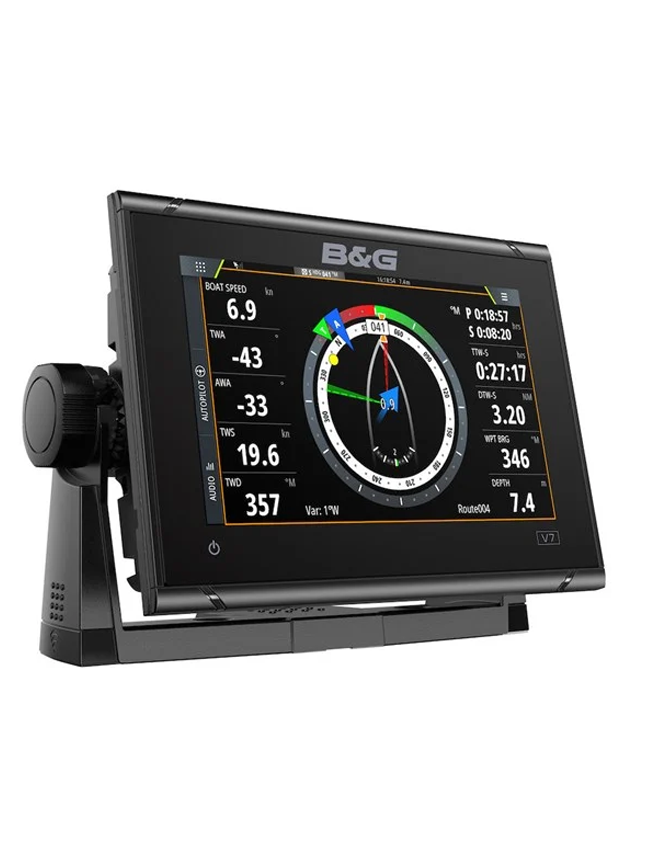

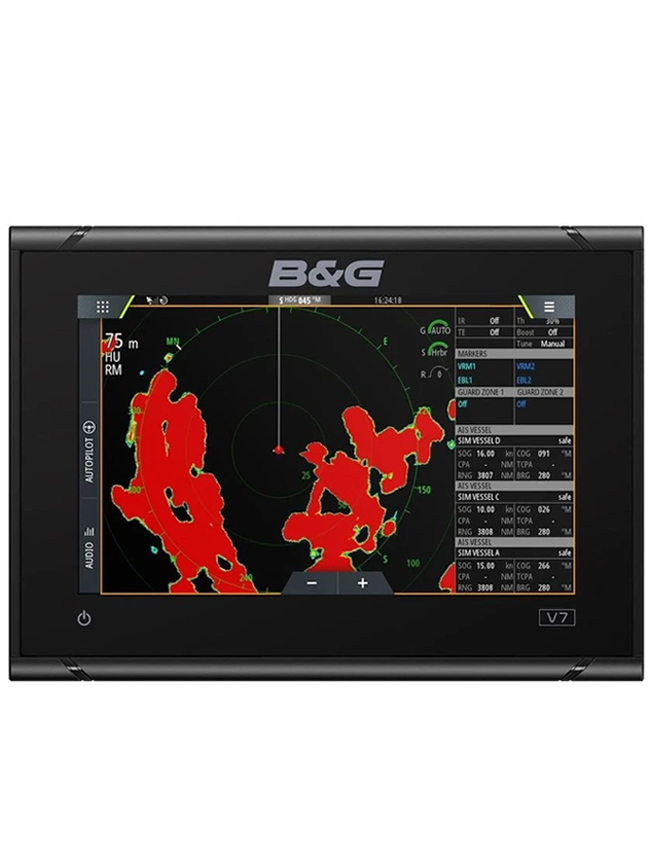

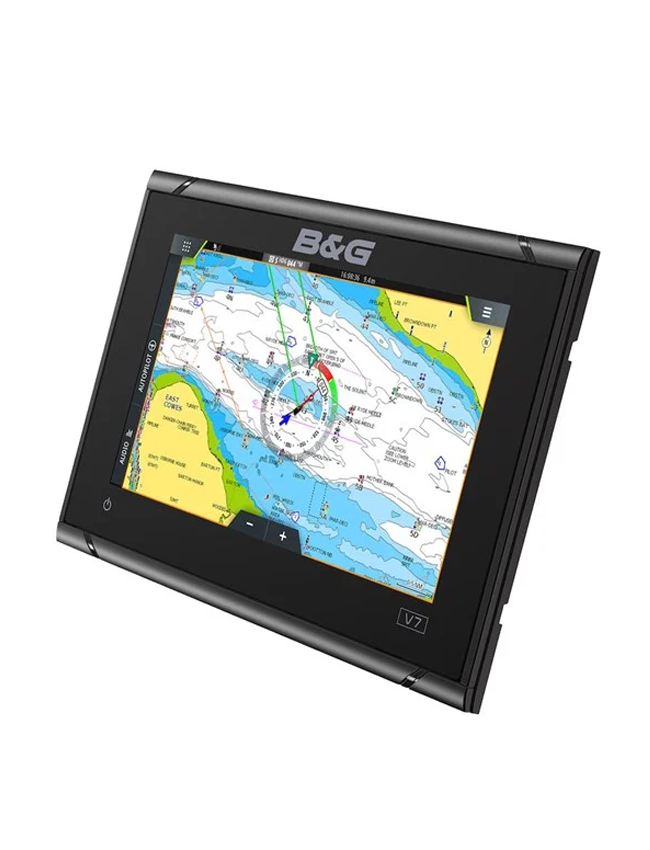

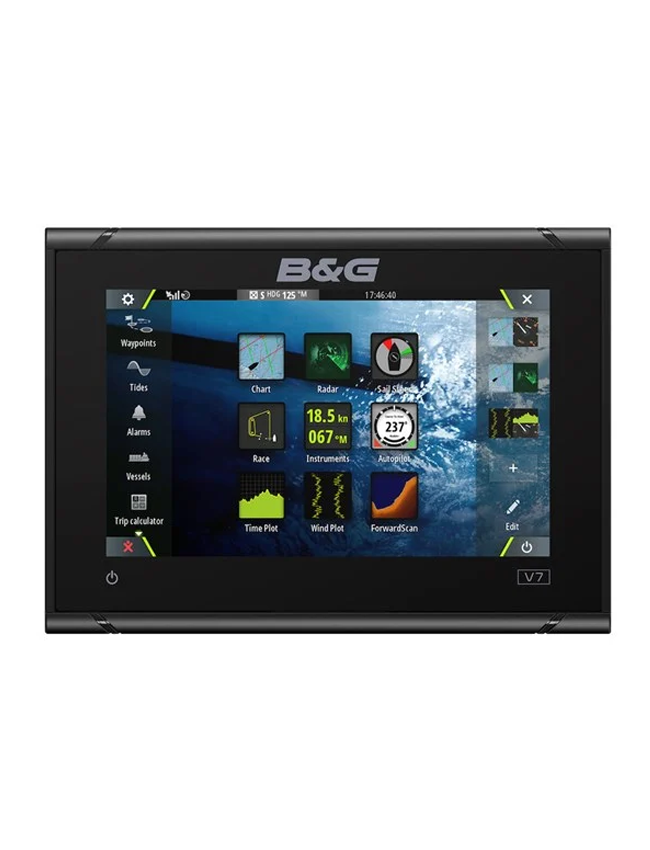

B&G Vulcan 7 Chartplotter

$1,076.60 CAD
Ships By Wed, December 10 Free Canada Shipping
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

The B&G Vulcan 7 is a great value, sailing chartplotter designed for coastal cruising and club racing. This easy-to-use, intuitive 7-inch multi-touch screen is packed with B&G’s unique sailing features including SailSteer and RacePanel. Simply integrate with your existing system, expansion is simple as Vulcan is NMEA 2000®, Broadband Radar™, ForwardScan™ and autopilot ready; and features built-in 10Hz GPS and Wi-Fi.

Key Features

  • Easy to use multi-touch display
  • Dedicated sailing features for cruising or racing: SailSteer, SailingTime, RacePanel, Laylines
  • Easy to integrate – Connect Vulcan to an existing system and add basic sailing components
  • Broadband Radar™ and ForwardScan™ ready
  • Integrated Wi-Fi
  • Control your B&G Pilot
  • Instrument data display

What's in the box?

  • Vulcan 7R Sun Cover
  • Vulcan 7/GO7 U-Bracket
  • GO7 XSR / Vulcan 7R Dash Mount Kit
  • GO7 XSR/Vulcan 7R Bezel

Specifications

Display
Backlight Color - White
Display Resolution - 800x480
Display Size - 7 inches
Screen Brightness - 1200 nits
Viewing Angles - 80° top/bottom, 80° left/right
Connectivity
Bluetooth - Internal
Ethernet Ports - 1 x 5 pin yellow connector x 100 Mbits/s. Radar and Sirius (USA only) connectivity only
Connectivity Wi Fi - Internal
NMEA 0183 Sentences supported - Exports NMEA0183 over WiFi
NMEA 2000 Connectivity - 1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity - None
SD Card Storage - 1 Micro SD slot, max. 32GB each. >32 GB format to NTFS
Video - None
Cartography
Charts Supported - Insight, Navionics (Gold, NAV+, Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Autopilot
Manouevres Turn Patterns - Tack / Gybe, Depth contour tracking
Steering Modes - Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, Wind NAV.* (*Boat type set to Sail)
Approvals
Approvals Compliance - CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Electrical
Power Consumption max - 20 W
Power Consumption typical - 12 W
Recommended Fuse Rating - 3A
Supply Voltage - 12V (10 – 17V)
Environment
Operating Temperature Range - "-15°C to +55°C (5° F to 131° F)
Shock Vibration - CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Storage Temperature Range - "-20°C to +60°C (4°F to 140°F)
Waterproofrating - IPX6 & 7
GPS
Correction - WASS, MSAS, EGNOS, GLONASS
GPS Receiver Channels - 32 Channels
Position Accuracy - Horizontal Accuracy 3 m (9.8 ft.)
Time to First Fix - Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec
Update rate - 10 Hz
MFD
AIS - Receive AIS data over NMEA 2000 only
Autopilot - Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, Wind NAV.* (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Cartography included - TBD
Digital Switching - BEP C-Zone, NaviOP
GPS - Internal, 10Hz, WASS, MSAS, EGNOS
Internal Storage - 90MB
Multimedia - via SonicHub2, Fusion Link, *Sirius, **JL Audio. (*USA only, **AUST. & NZ only)
Sonar Compatibility - Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector
Waypoints, Routes, Tracks6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Weather - Sirius XM WM-3 (USA only), GRIB
Physical
Dimensions W x H x D - 197 mm x 141 mm x 82.7 mm (7.56" x 5.55" x 3.26") (no bracket)
Mounting Type - Bracket or Panel
Weight - 1.320 kg (2.91lb)
Other
Interface - Touch screen, ZC1 or ZC2 controller via NMEA 2003
Languages - Standard Language Pack: English (US), English (UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocks: Asian Language Pack: English (US), Japanese, Korean, Thai, Chinese. Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, Turkish. Russia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, Ukrainian. Middle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
Warranty Period - 2 Years
