Navico Autopilot Pump Fitting Kit for ORB Steering System
$27900 CAD
Unit price
/
Unavailable
Navico Autopilot Pump Fitting Kit for ORB Steering System is backordered and will ship as soon as it is back in stock.
Pickup available at our Nanaimo Store
Usually ready in 24 hours
-
BrandNavico (Simrad, Lowrance & B&G)
-
SKU:000-15942-001
-
Barcode:
Navico Autopilot Pump Fitting Kit for ORB Steering System
$27900 CAD
Unit price
/
Unavailable
Description
Description
Autopilot hydraulic fitting kit for ORB steering System and MKII Pumps 1, 2, 3, 4 &.5 Hose configuration to suit various pump and helm layouts. Compatible with O-Ring BOSS (ORB) steering systems such as Seastar and various others.
Product details
Fitted hose kit designed for simplified ORB system installations, reducing the incidence of faulty field terminated hydraulic hoses and incorrect installation layouts.

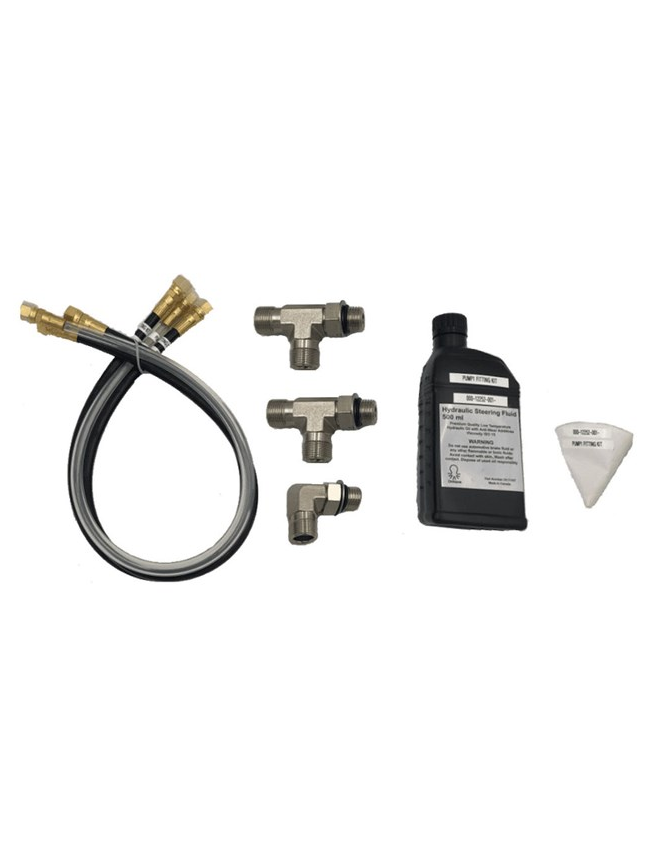

Kit contains:
- 2 x T Connectors ORB-05M > 9/16”-24 UNF > 9/16”-24 UNF
- 1 x Right angle connector ORB-05M > 9/16”-24 UNF
- 2 x Hoses 5/16" dia. (Black) 1500 PSI max, 750 mm (29.5"), 9/16” UNF to 9/16”-24 UNF
- 1 x Hose 5/16" dia. (Clear) 65 PSI max, 750 mm (29.5"), 9/16” UNF to 9/16”-25 UNF
- 1 x Bottle of hydraulic fluid
- 1 x Filter funnel
Specifications
Physical
Dimensions W x H x D - 33 x 25 x 2.5"
Weight - 1.36
