Description

Please call for shipping quote 1-877-753-2425
HALO24 revolutionizes radar by offering an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack Doppler technology, and enjoy simultaneous short and long-range coverage-up to 48 nautical miles-from one compact 24-inch dome antenna.

Specifications

Ethernet Ports
100 Base T
Max Wind Speed
100 knots (51 m/s)
Min Range, scale
100 m (328 ft)
Warranty Period
2 Years
Power Consumption typical
20W
Operating Temperature Range
-25° to + 55°C (-13° to +130°F)
Power Consumption max
27W
Beam width
3.9° nonminal (-3dB) 2° with target separation on high
Max Range, scale
48 NM
Recommended Fuse Rating
5A
Weight
6.75 kg (14.9 lbs) without cable
Dimensions Diameter
610mm (24")
Dimensions H x W x D
610mm dia x 225 mm H. (24" dia x 8.9" H)
Supply Voltage
9 - 31.2 VDC (12/24V systems)
Humidity
95% RH at 35°C (95°F)
Approvals Compliance
FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety: China SRRC & CCS
Radar Modes
Harbour, Offshore, Weather, Bird Dual Range, North Up Course Up, Relative motion, True Motion
Waterproofrating
IPX6
Radar Technology
Pulse Compression
Interface
Simrad MFD
Rotation speed
Up to 60 RPM (Range Dependent)
b&g halo 24
B&G

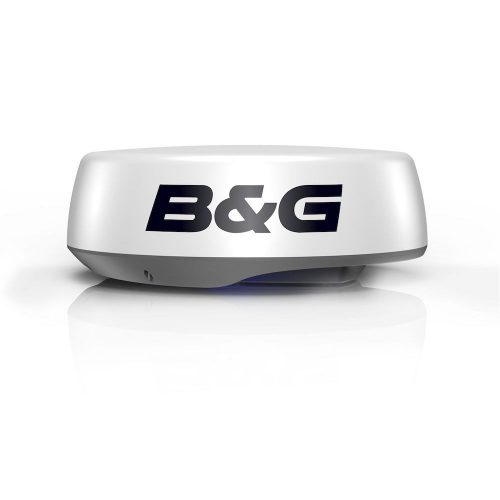

B&G Halo24 Radar

$4,33900 CAD
Please call for shipping quote 1-877-753-2425
HALO24 revolutionizes radar by offering an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack Doppler technology, and enjoy simultaneous short and long-range coverage-up to 48 nautical miles-from one compact 24-inch dome antenna.

Specifications

Ethernet Ports
100 Base T
Max Wind Speed
100 knots (51 m/s)
Min Range, scale
100 m (328 ft)
Warranty Period
2 Years
Power Consumption typical
20W
Operating Temperature Range
-25° to + 55°C (-13° to +130°F)
Power Consumption max
27W
Beam width
3.9° nonminal (-3dB) 2° with target separation on high
Max Range, scale
48 NM
Recommended Fuse Rating
5A
Weight
6.75 kg (14.9 lbs) without cable
Dimensions Diameter
610mm (24")
Dimensions H x W x D
610mm dia x 225 mm H. (24" dia x 8.9" H)
Supply Voltage
9 - 31.2 VDC (12/24V systems)
Humidity
95% RH at 35°C (95°F)
Approvals Compliance
FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety: China SRRC & CCS
Radar Modes
Harbour, Offshore, Weather, Bird Dual Range, North Up Course Up, Relative motion, True Motion
Waterproofrating
IPX6
Radar Technology
Pulse Compression
Interface
Simrad MFD
Rotation speed
Up to 60 RPM (Range Dependent)
