Blue Sea Systems

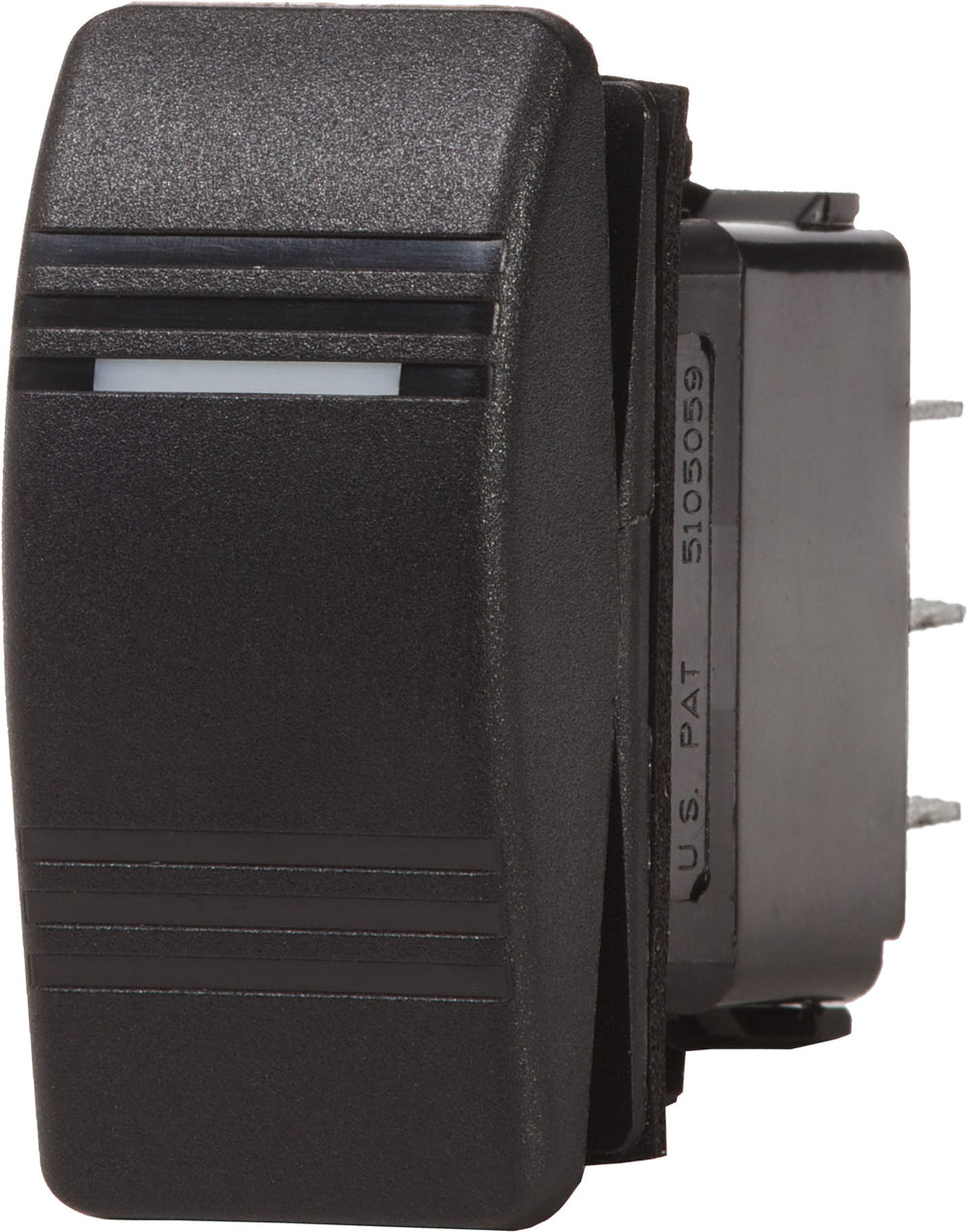

Blue Sea Contura Switch SPST Black - OFF-ON

$1959 CAD
  • Vibration, shock, thermoshock, moisture and salt spray resistant
  • Specially manufactured for mounting in Blue Sea Systems" water resistant panels
  • Ignition Protected - Safe for installation aboard gasoline powered boats
  • Meets UL1500 and ISO8846 ignition protection requirements
Specifications
Action OFF-ON
Pole / Throw SPST
Actuator Color Black - Contura III
Common Applications lights
Maximum Amperage 20A @ 12V
15A @ 24V
Amperage Operating Current 18mA (LED)
Minimum Operating Temperature -40° C
Maximum Operating Temperature 85° C
Actuator Position to Light LED ON
Embedded LEDs 1
Lighting LED rated 100,000 hours half-life
Seals Internal and external gasket panel seal
Weight 0.09lb (0.04 kg)
Weight 0.09lb (0.04 kg)
Resources
